Kraken Wiring
Created by
Valeriia Dehtiar
, last updated on
Aug 27, 2025
1 minute read
Cut the wire to length (usually 8/10/12)

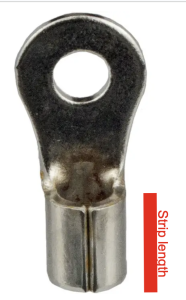

Strip the ring side of the wire to the ring terminal length
If stripped too much, then cut the copper off
Strip the other side to ferrule length
Put the ring terminal on the wire
Put the crimps protrusion in the middle of the ring terminal
Squeeze till the handle is released
Wrap the wire in snakeskin
Add heat shrink on both sides of the snakeskin
Label with to and from (gold heat shrink)
strip length for kraken side
ferrule side before crimping (approximately 1/2")
